100% brand new and high quality
Made of high quality material, durable and practical to use

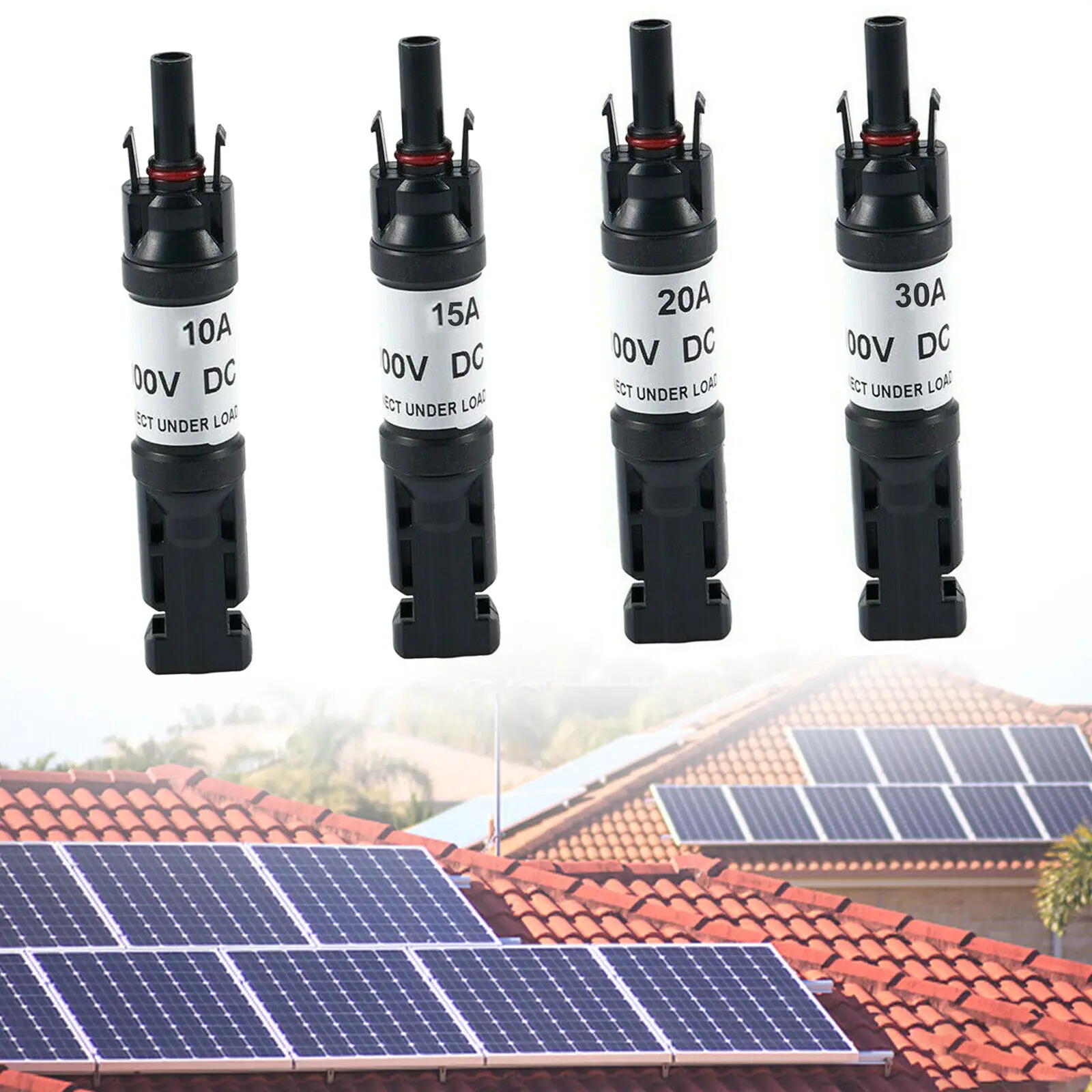

Use a practical, easy-to-use connector between the solar panel and the switch box to prevent reverse current flow
The contacts of the connector are copper and tinned for easy soldering. Each end nut has a rubber bushing for air sealing
Specifications:
Connector Material: PPO+ PC
Protection Level: IP67

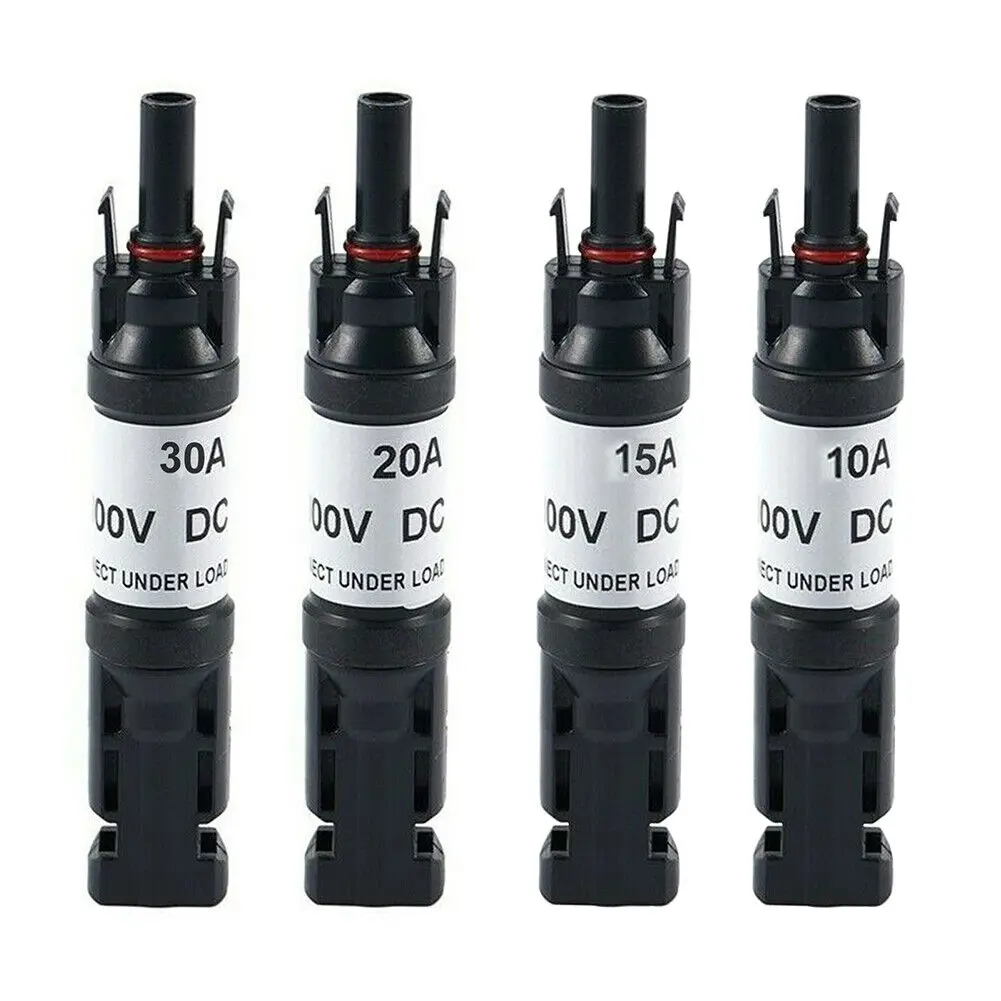

Optional Rated Current: 10A / 15A / 20A / 30A
Flame Rating: UL94-V0
Rated Voltage: 1000V (TUV) & 600V (UL)
Test Voltage: 6kV (50Hz, Lmin)
Insertion / Extraction Force: 50N or less / 50N or More
Pin Size: F4.0mm
Connection System: Crimp Connection
Contact-Resistance of Plug: 5mohm or Less
Temperature Range: (-40 degrees Celsius to 125 degrees Celsius)
Contact-Material: Copper, Tin Plated
Maximum Temperature: 110 Degrees Celsius
Insulation Material: PPO
Size：17 x 9 x 1 cm
Package Includes:

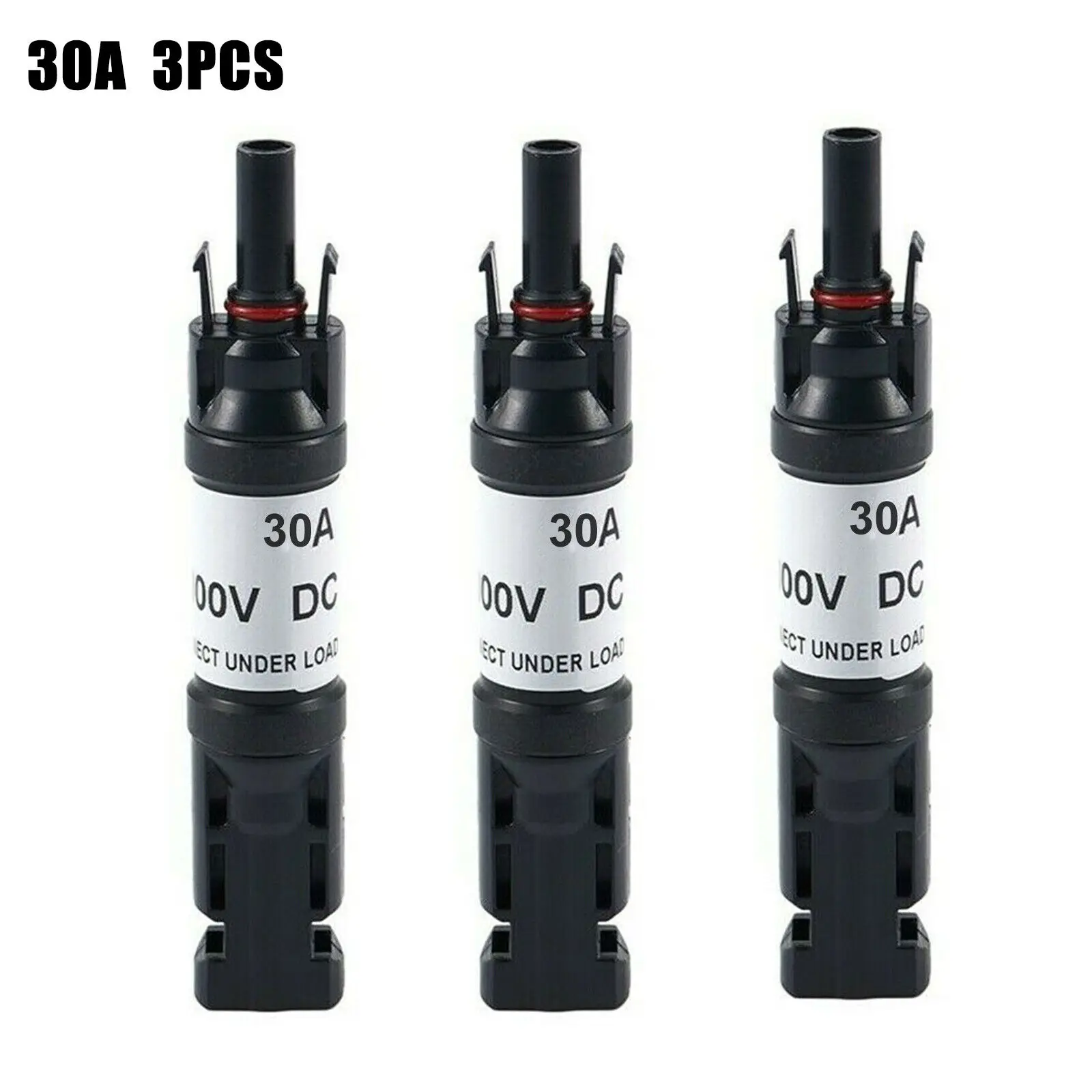

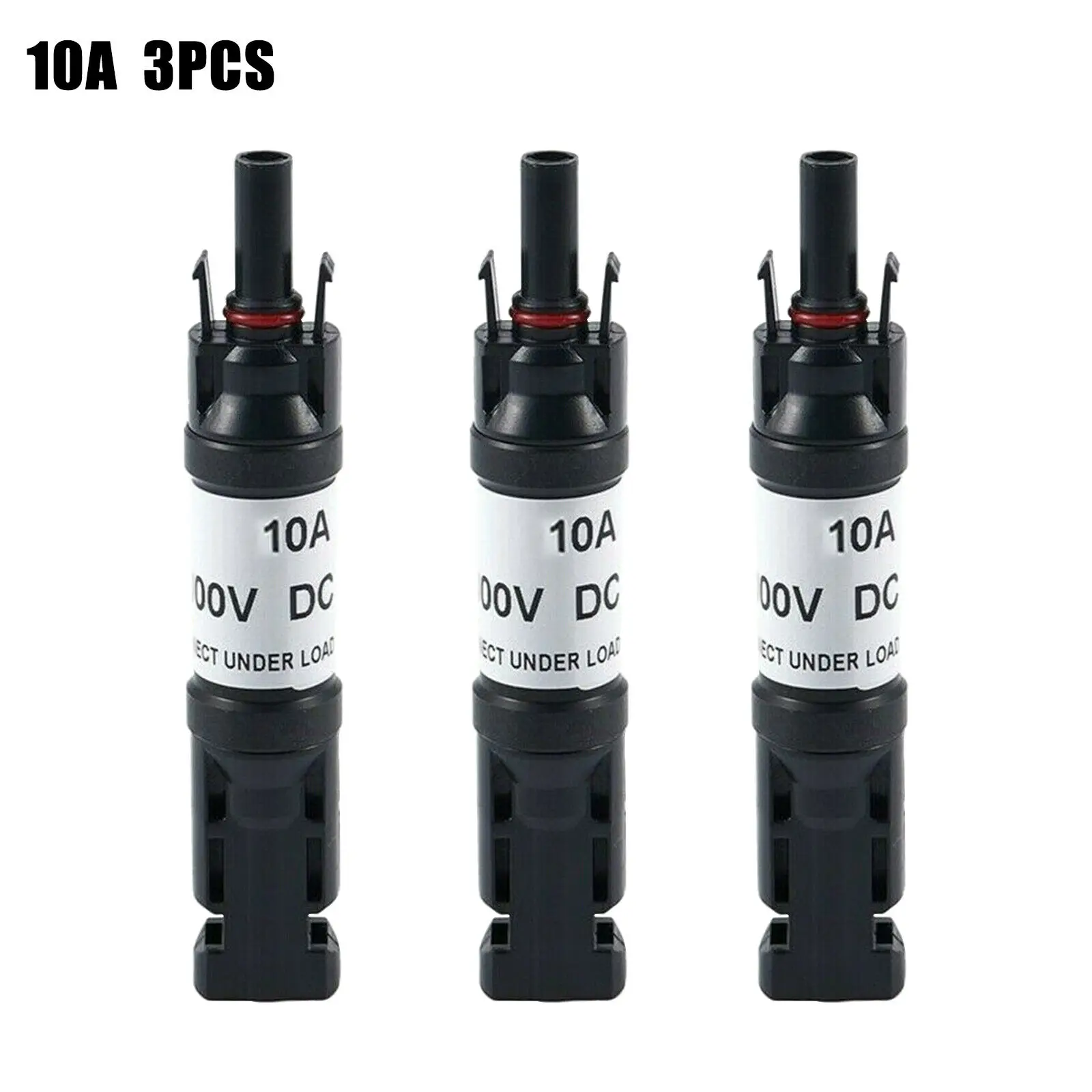

3 x Diode Connector
Packing list
Package Includes:
3 x Diode Connector
